10-Piece Ball Joint Press Kit

The 10-Piece Ball Joint Press Kit removes and installs press-fit ball joints, U-joints, and brake anchor pins without dropping the control arm.

Use it in the driveway or the bay. The C-frame screws through the bushing while the adapters cup each side, so the joint moves out cleanly instead of getting hammered. The kit covers most domestic and import cars, light trucks, and SUVs.

Why this ball joint press kit works

• 10 adapters in one case: covers a wide range of press-fit ball joints, U-joints, and pinion bearings without buying loose receiving cups.

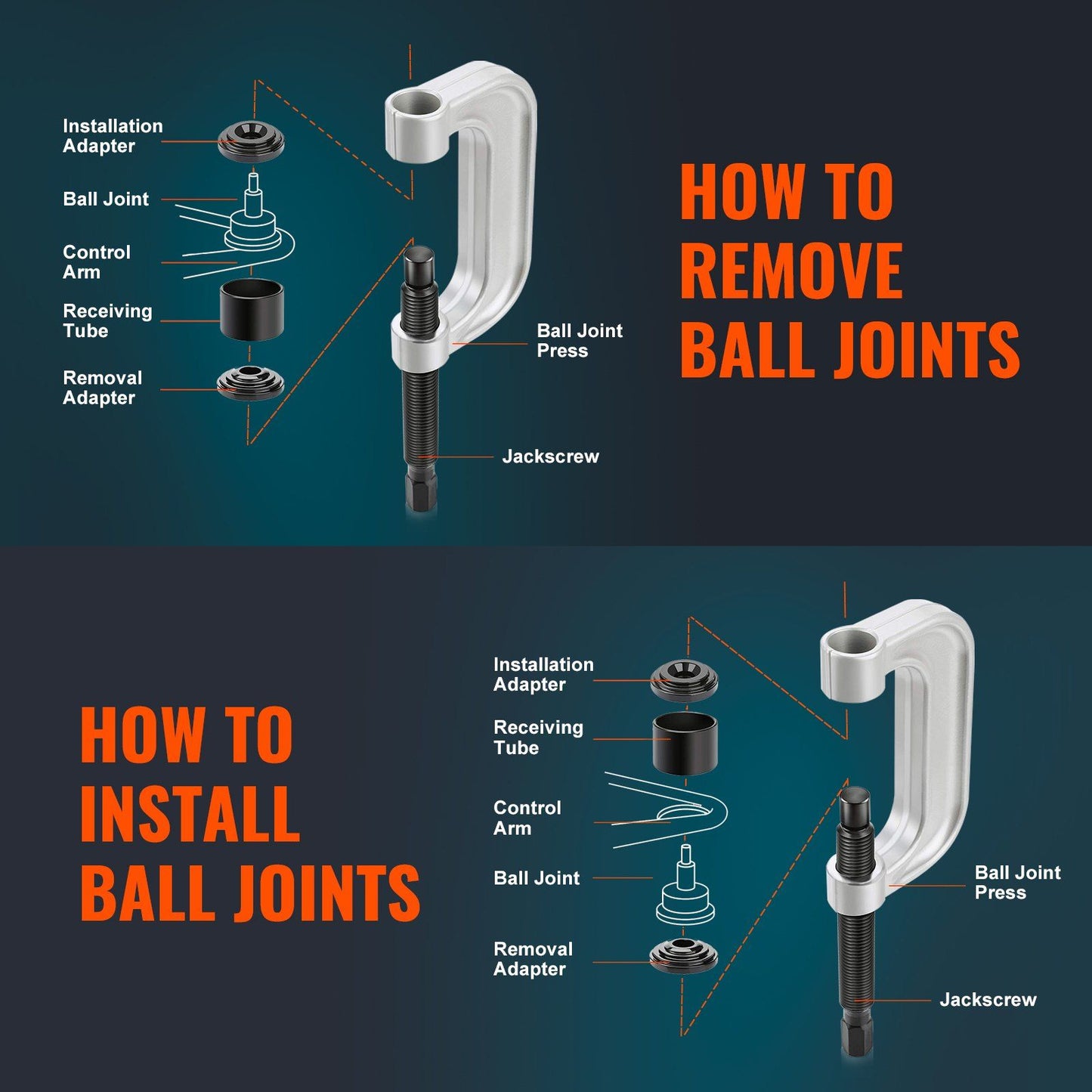

• C-frame design: straddles the control arm so the joint can be pressed in or out while still in the vehicle.
• Forged main screw: threads smoothly under load, with hex flats for a 3/4 in wrench or impact.
• Shop and DIY ready: works for suspension rebuilds, brake repairs, and U-joint swaps on 2WD and 4WD vehicles.

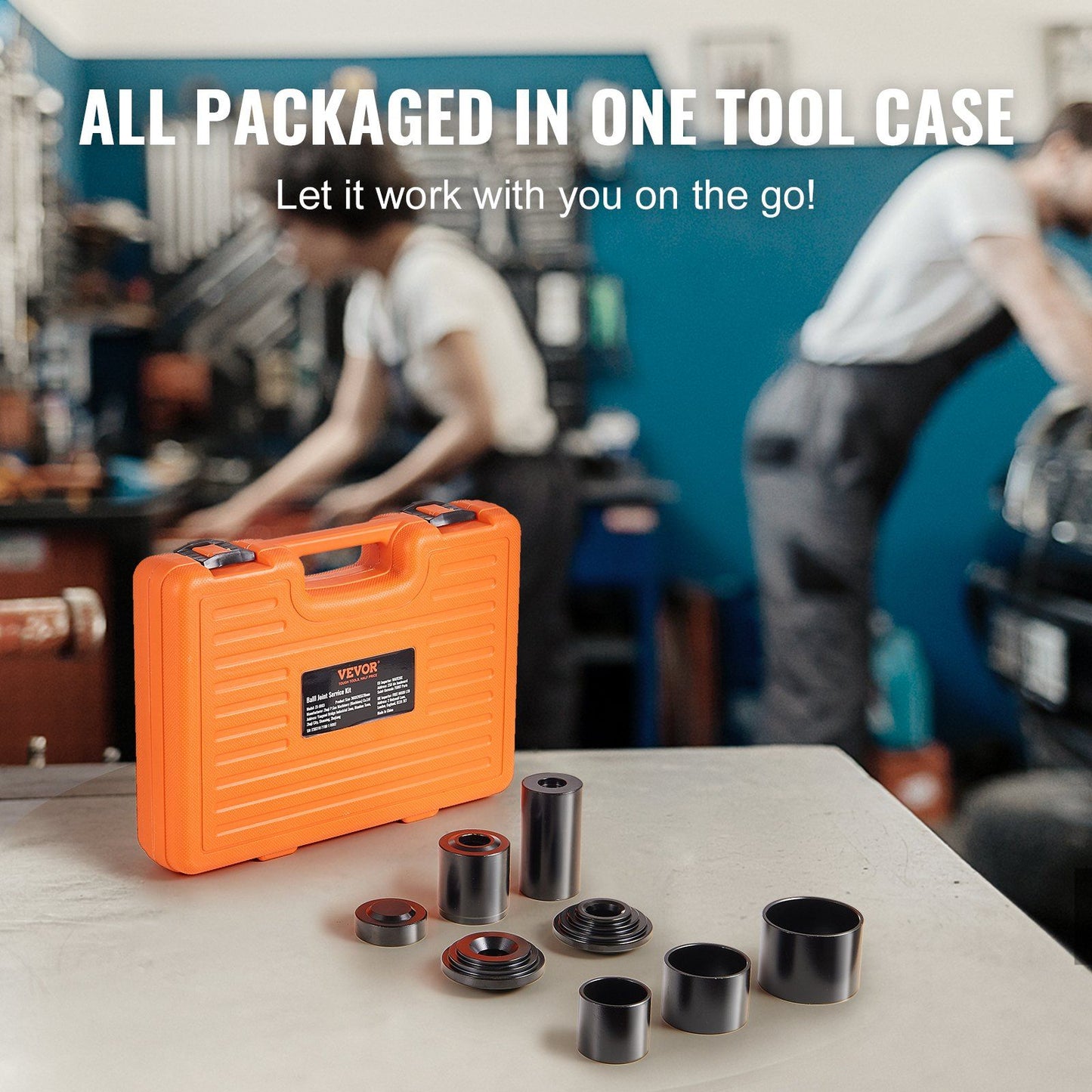

• Blow-molded case: keeps adapters sorted and labeled so the right cup is easy to find on the next job.

Specs and details

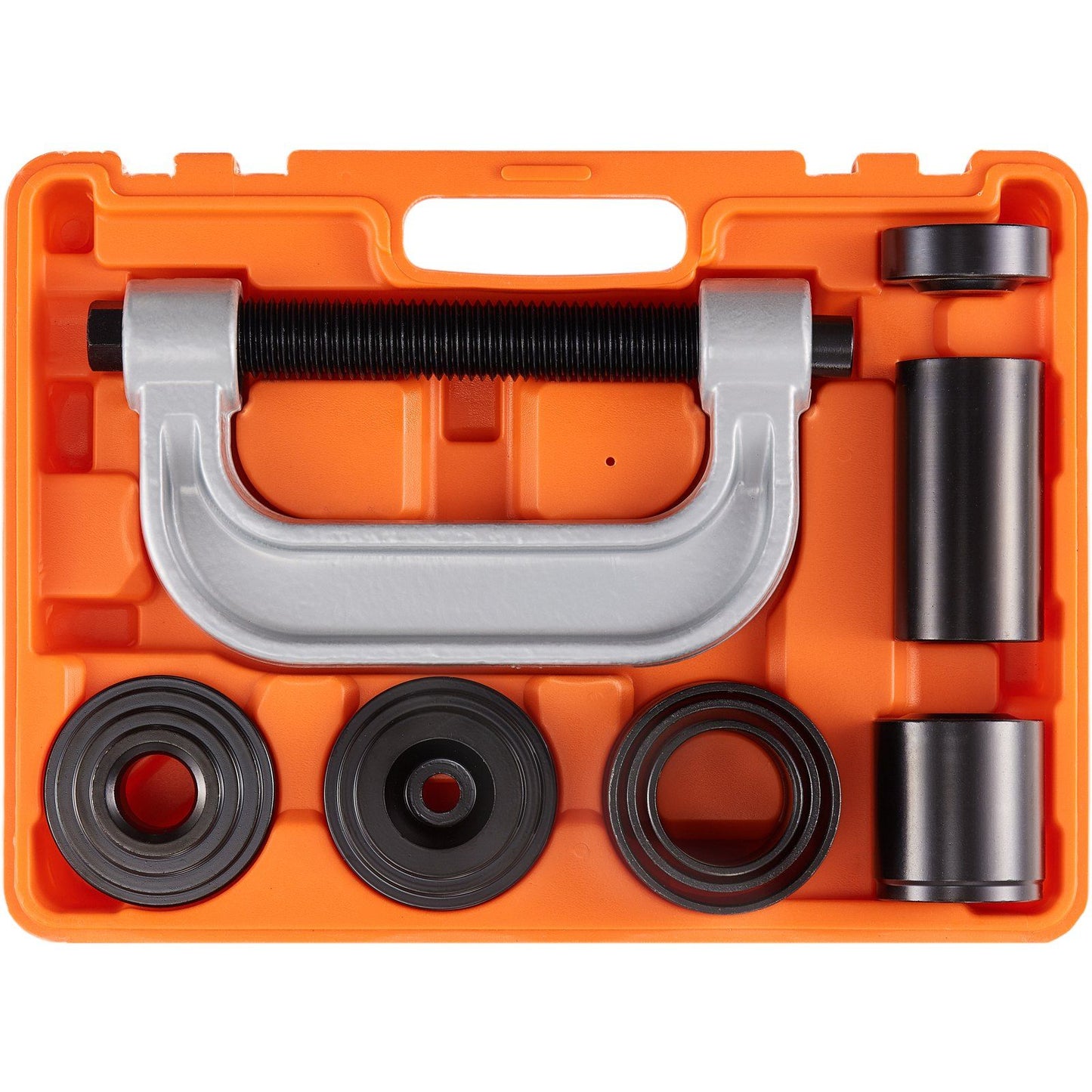

• Configuration: 10 pieces, C-frame press with adapters
• Drive: hex on main screw, works with hand wrench or impact
• Application: press-fit ball joints, U-joints, brake anchor pins
• Vehicle range: most cars, light trucks, and SUVs (2WD and 4WD)
• SKU: D0102HPC86J
• Storage: blow-molded carrying case

Round out the toolkit with our 1000lb Bolt-On Trailer Jack.

Frequently asked questions

Do I need to remove the control arm to use this kit?
No. The C-frame is designed to wrap around the control arm so you can press the ball joint in or out on the vehicle. That is the main reason shops use this style instead of a bench press.

Will this work on 4WD trucks and SUVs?
Yes. The adapter set covers most press-fit ball joints on 2WD and 4WD vehicles. Check the joint diameter on your specific model before pressing to make sure one of the included cups matches.

Can I use an impact wrench on the main screw?
Yes, the screw has hex flats sized for a standard 3/4 in wrench or impact socket. Keep the impact on a moderate setting and stop as soon as the joint seats so you do not over-press the housing.

What else does the kit work on besides ball joints?
The same adapters press U-joints on driveshafts and brake anchor pins on heavier trucks. Match the cup to the part diameter and back the press against a solid receiver before turning the screw.
