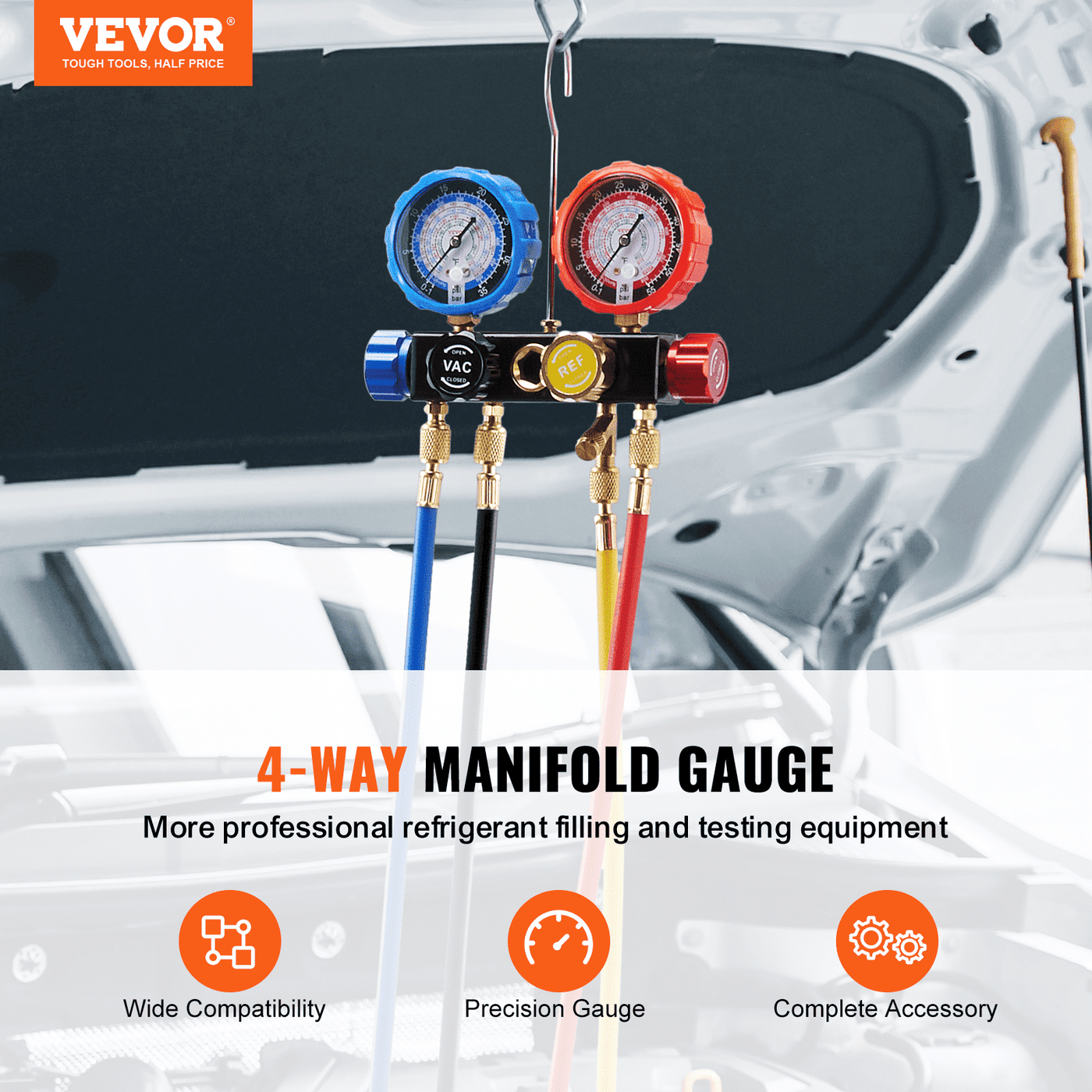

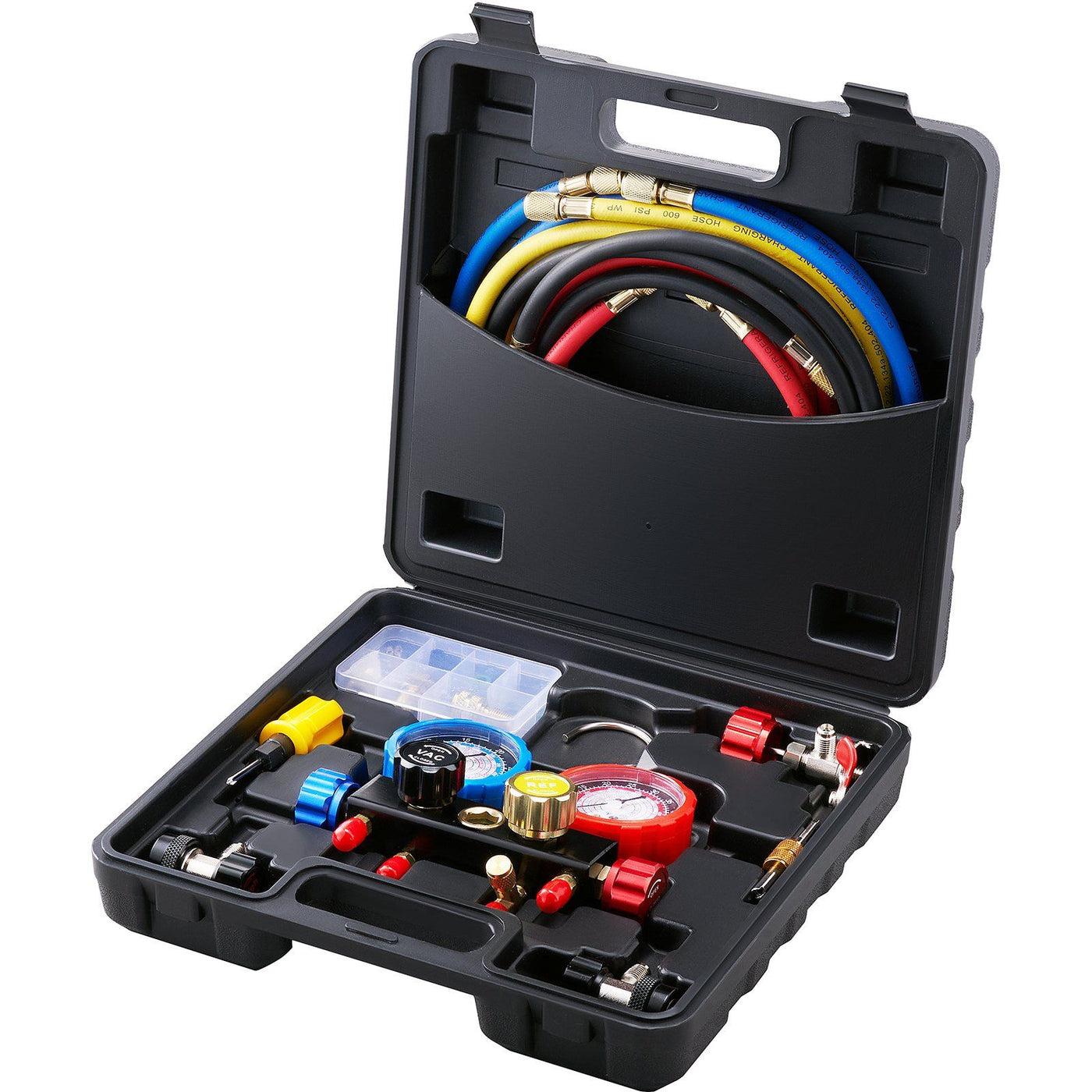

4-Way AC Manifold Gauge Set

The 4-Way AC Manifold Gauge Set reads R134A, R22, R12, and R410A so you can diagnose, recover, evacuate, and charge AC systems with one tool.

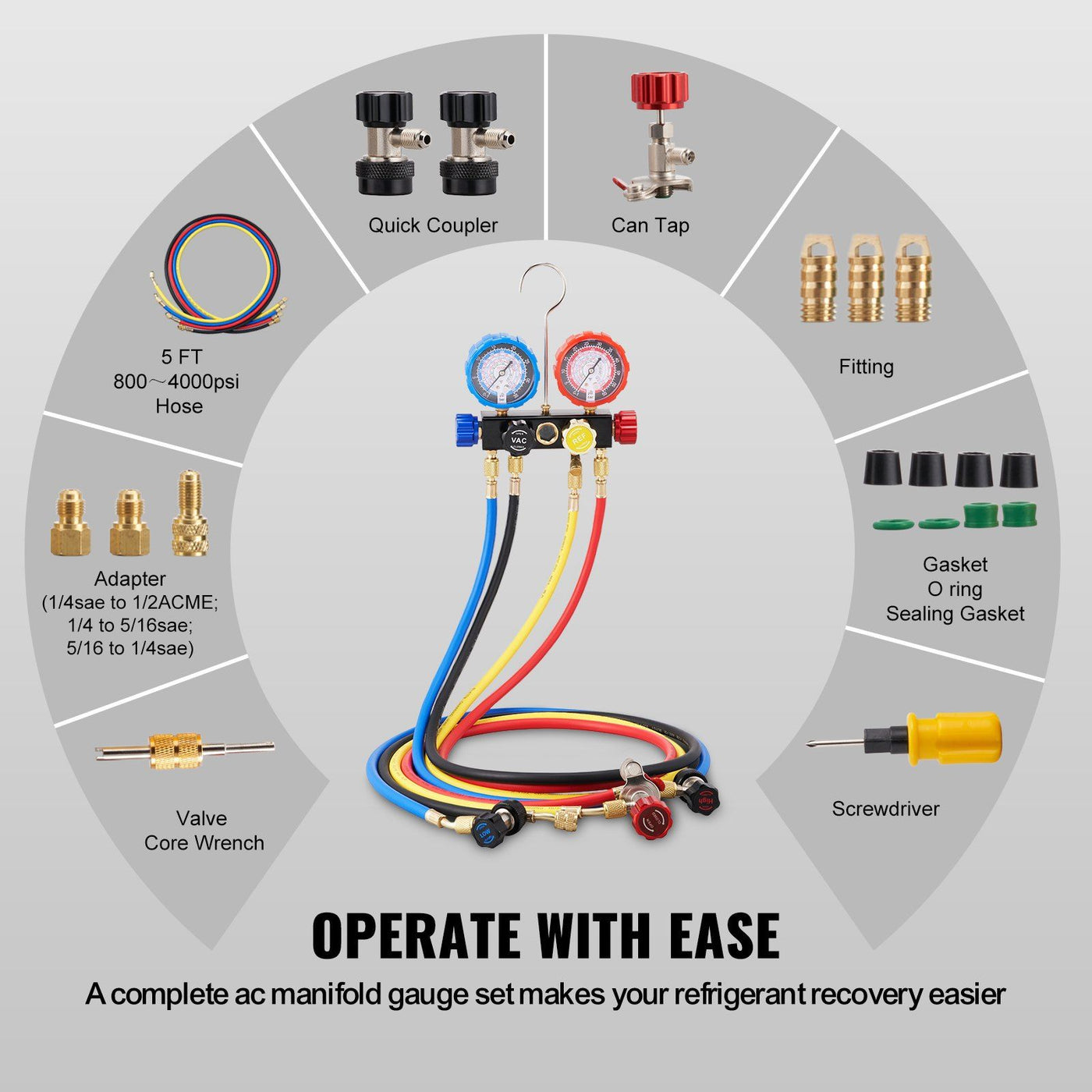

The four-valve layout adds a dedicated port for a vacuum pump or recovery machine, so you do not have to swap hoses every time you change steps. The 5 ft hoses give working room under a hood or behind a wall-mount condenser.

Why this 4-way AC manifold gauge set works

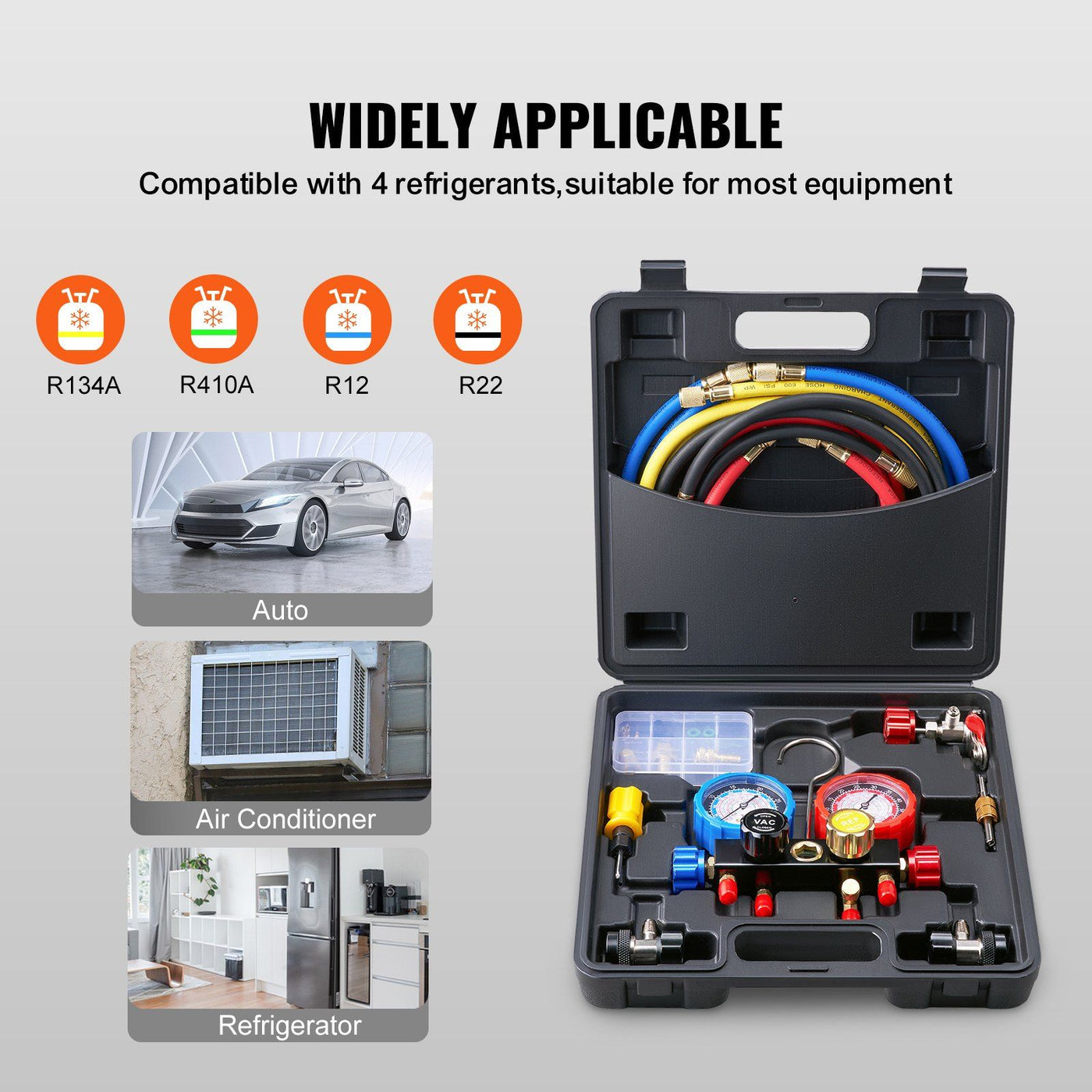

• Four refrigerants in one set: calibrated for R134A, R22, R12, and R410A across car AC and home HVAC.
• Four-valve manifold: separate ports for low side, high side, refrigerant tank, and vacuum or recovery.

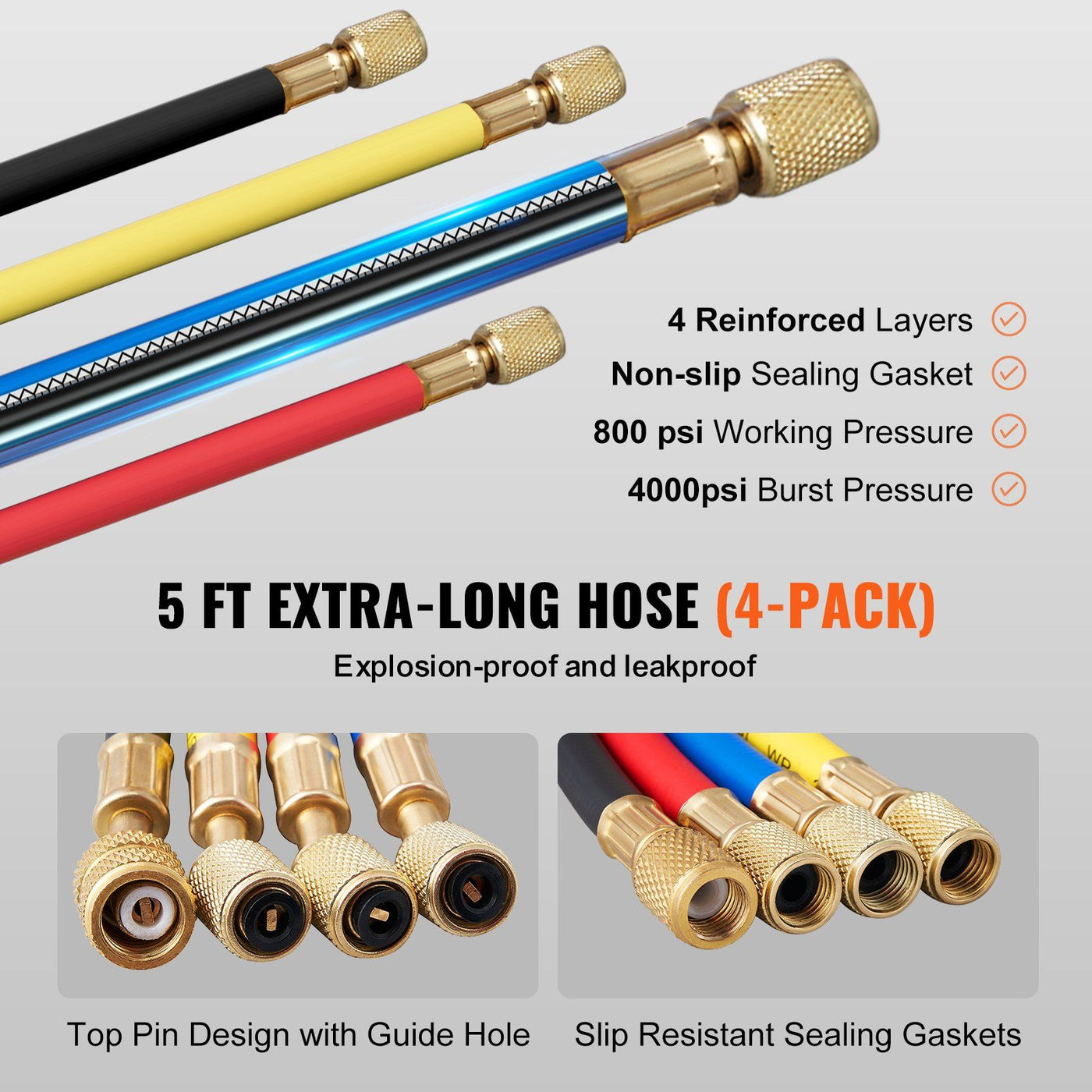

• 5 ft hoses: long enough to reach service ports without contorting the body.

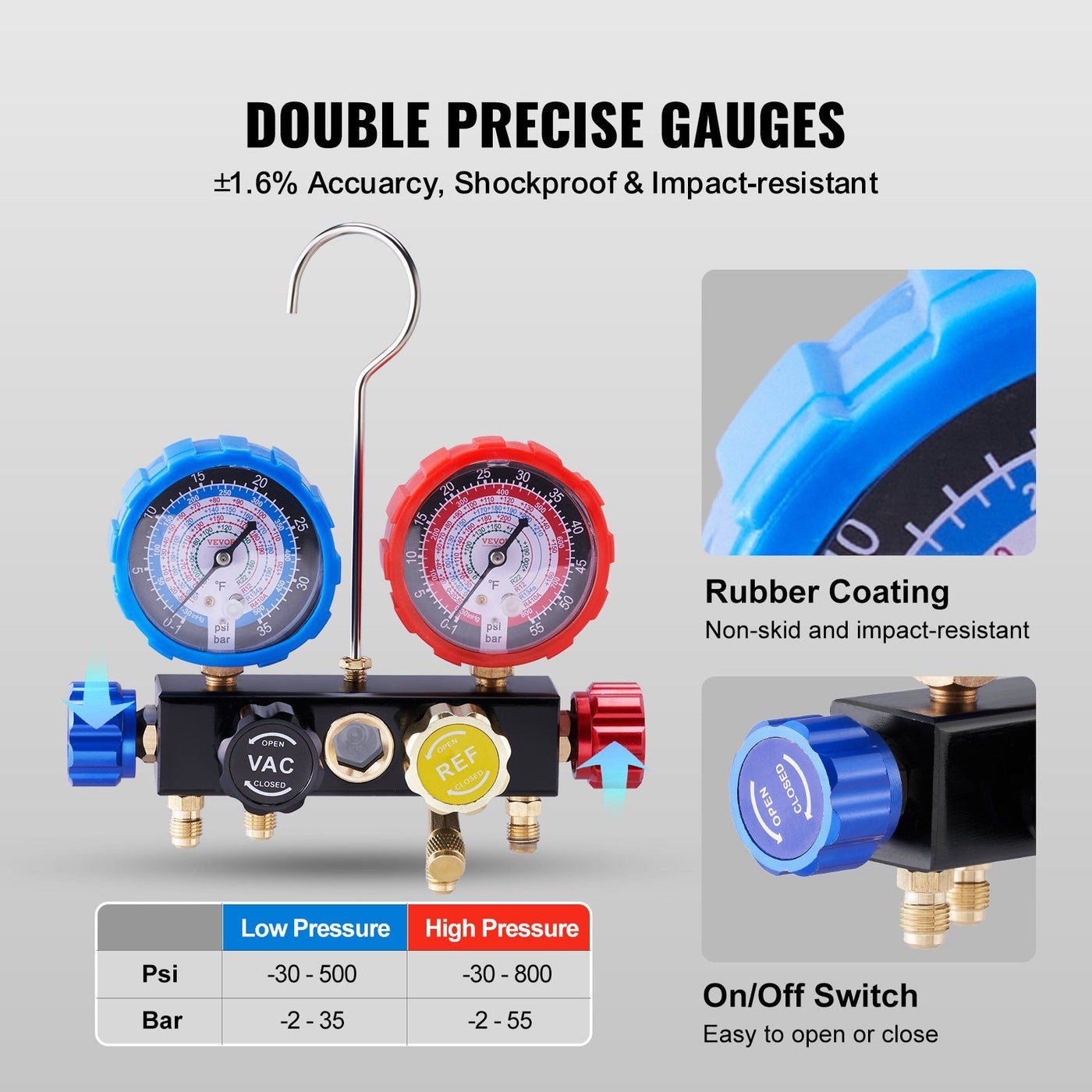

• Dual scale gauges: pressure plus matching temperature scales for quick subcool and superheat checks.

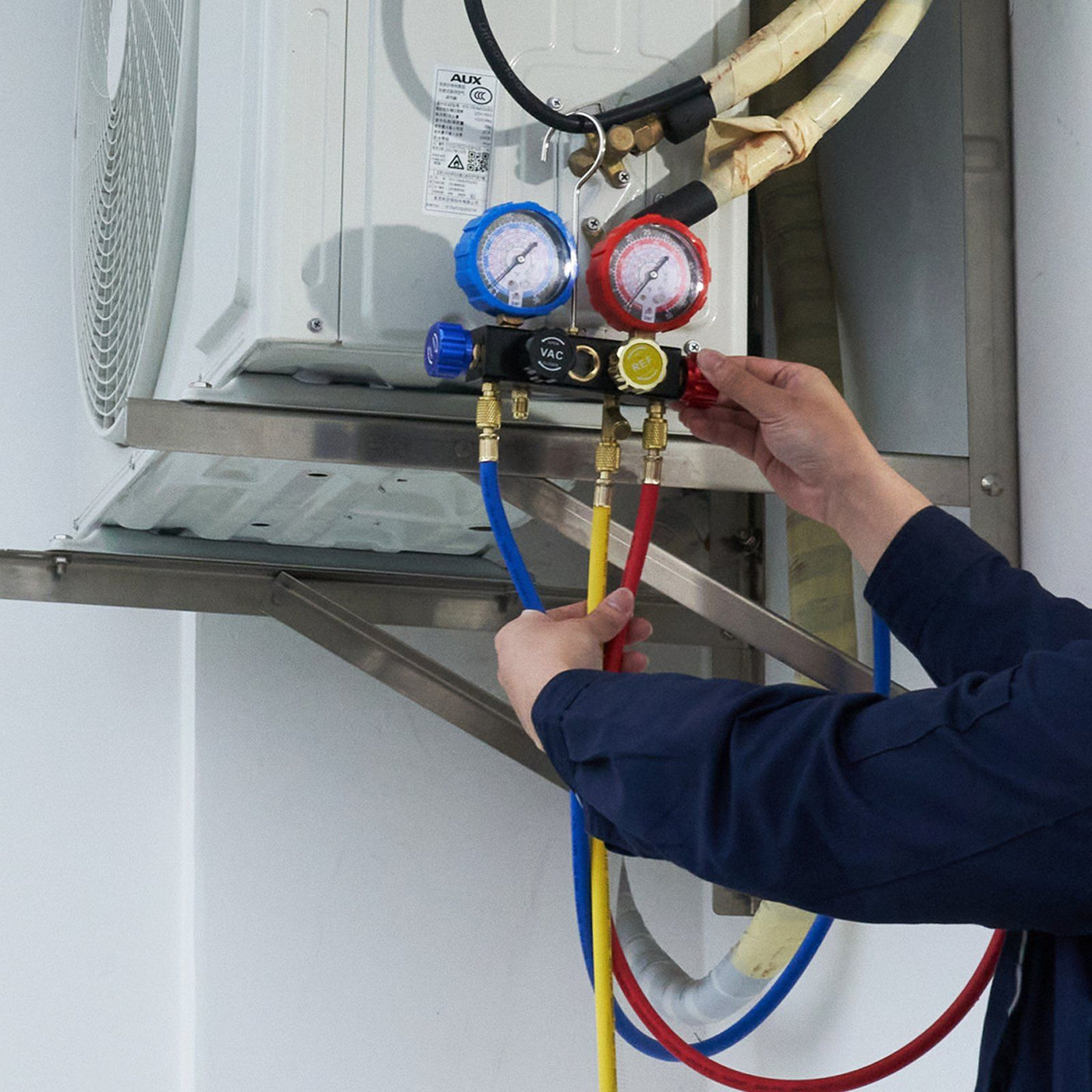

• DIY and pro use: works for technicians, mobile auto AC techs, and home HVAC owners.

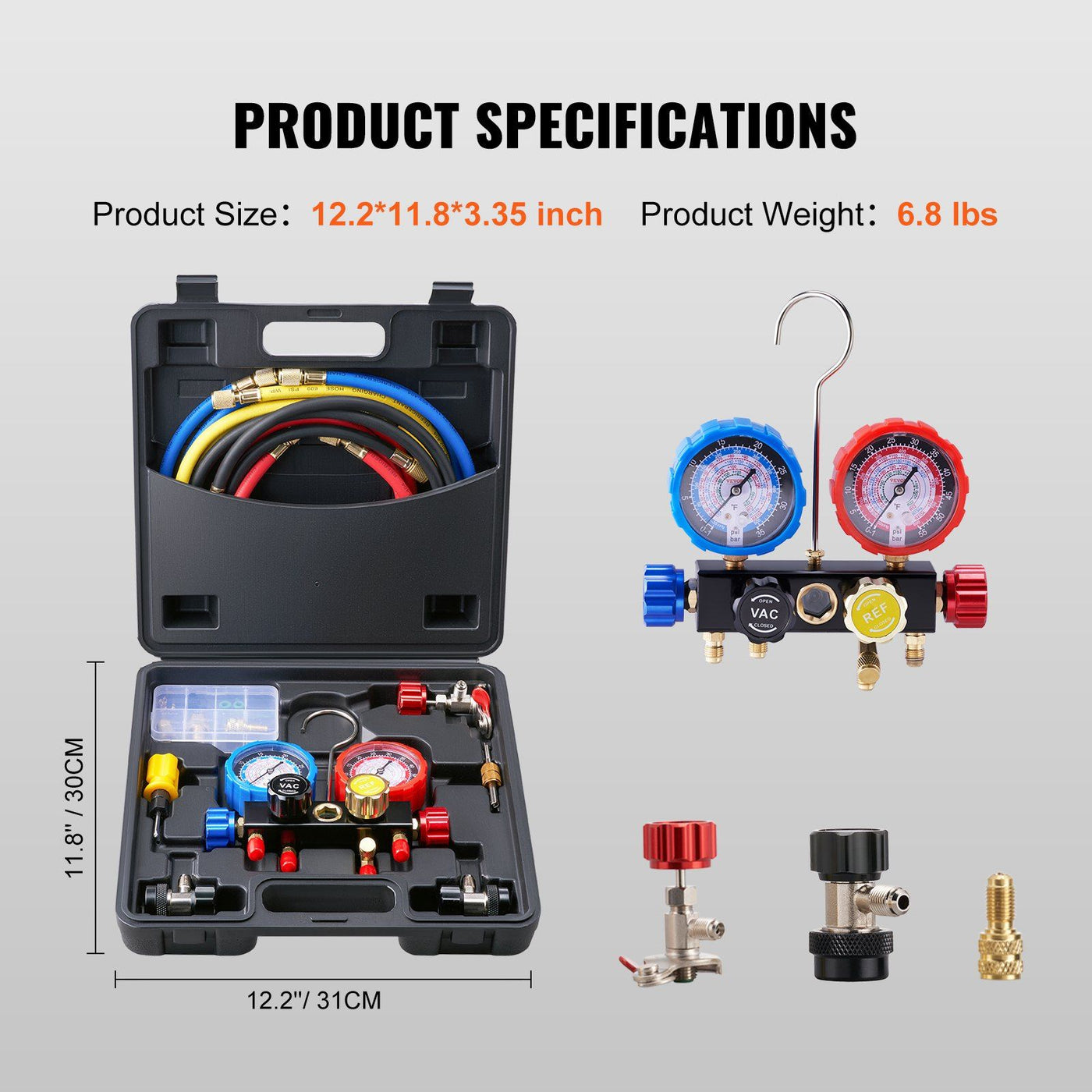

Specs and details

• Refrigerants: R134A, R22, R12, R410A
• Valves: 4-way manifold
• Hose length: 5 ft (per hose)
• Applications: automotive AC, home HVAC, mini-split service
• SKU: D0102HGWDS7

Round out the toolkit with our 10-Piece Ball Joint Press Kit.

Frequently asked questions

Can I use this gauge set on home HVAC and a car AC?
Yes. The same manifold reads automotive R134A and R12 plus home HVAC R22 and R410A. You use the same gauges and switch service hoses or adapters to match the port type on each system.

Why are there four valves instead of two?
The fourth valve gives a dedicated port for a vacuum pump or recovery machine. You can pull a vacuum, close that valve, and then charge from the refrigerant tank without changing any hose connections.

Do I need a vacuum pump along with this manifold?
For correct service yes. After any system is opened, you pull a deep vacuum to remove moisture before charging. The fourth port on this manifold is sized to connect a standard vacuum pump.

Are the hoses safe for R410A pressures?
The included hoses are rated for the refrigerants the manifold supports, including R410A, which runs at higher pressures than R22. Inspect the hoses for cracks or swelling before each job and replace any hose that has been kinked or stepped on.
