810 LED Display Instrument with Gear Shift

Overview

Wide Voltage Compatibility: Supports 24V, 36V, and 48V electric bicycle systems for versatile use.

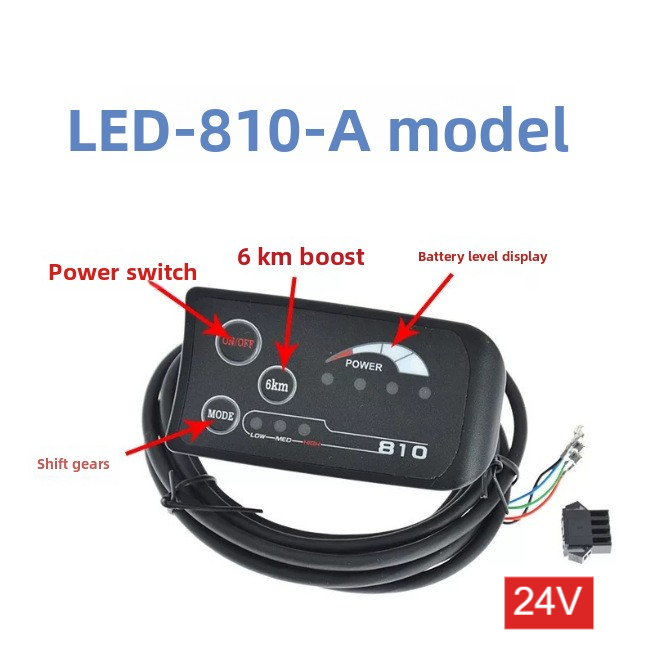

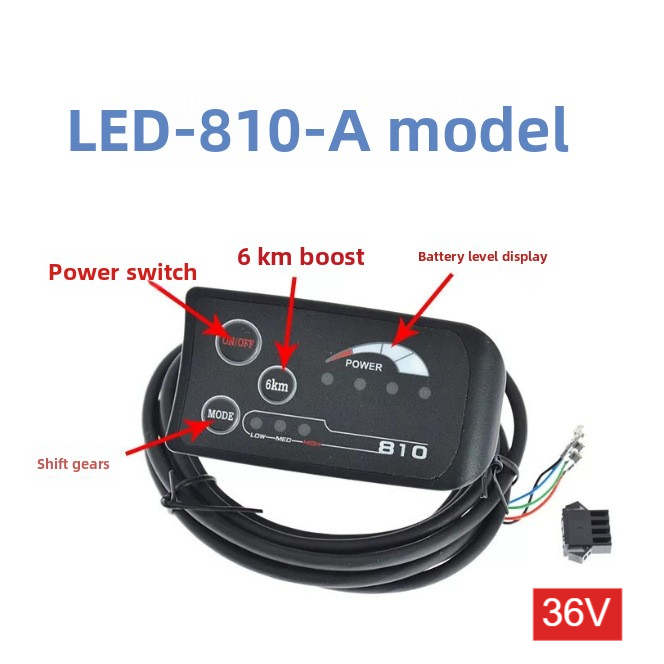

Clear LED Display: Equipped with an 810 LED instrument for easy reading of battery level and speed data.

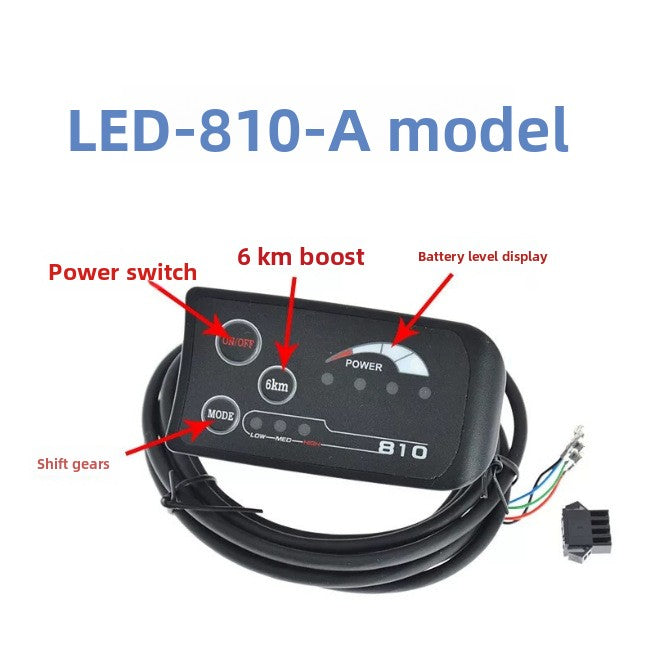

Functional Control: Integrates gear shifting and a 6km boost function in A models for enhanced riding.

Headlight Management: B models feature a dedicated headlight switch for convenient lighting control.

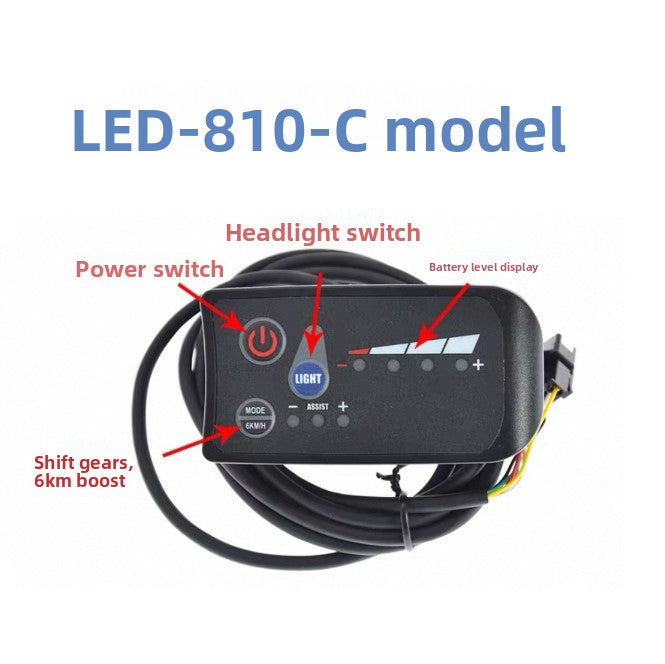

Full Combination: C models offer both the 6km boost and headlight switch for maximum functionality.

Specifications

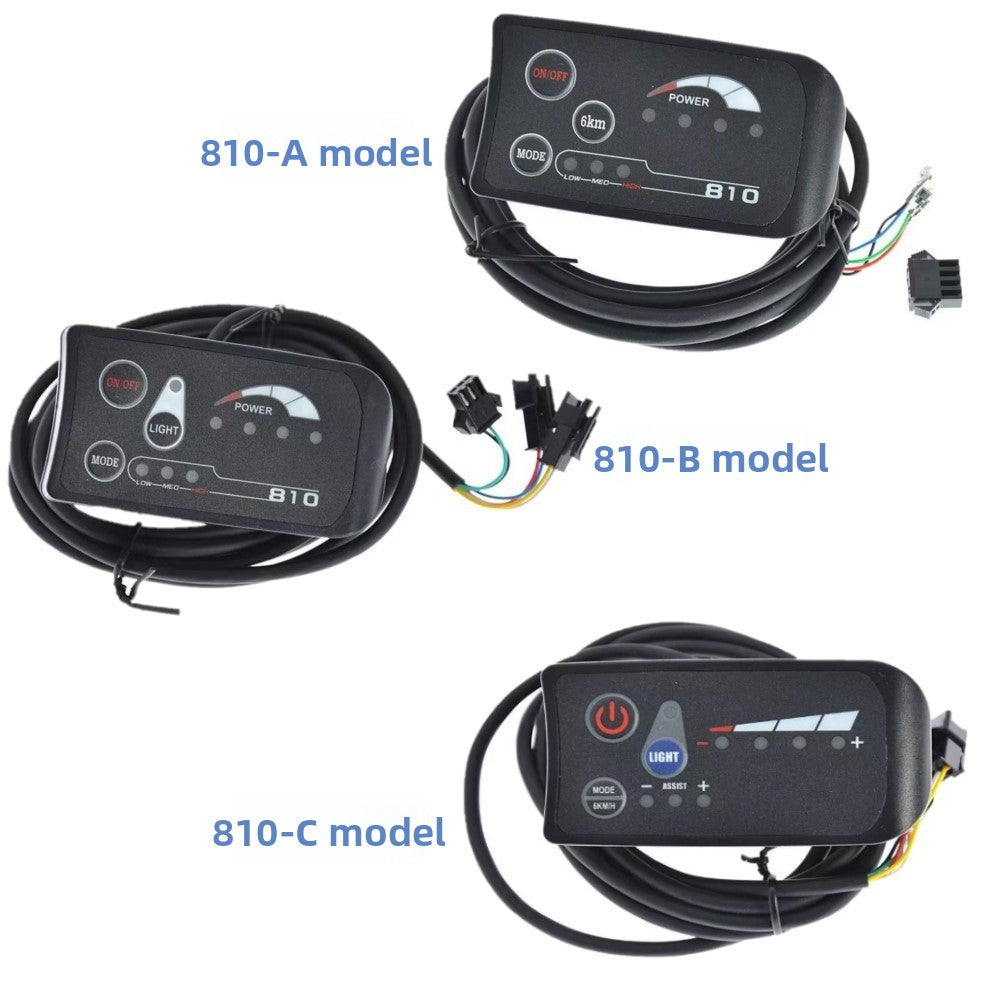

Model: LED-810

Material: ABS shell

Product Dimensions: 8.1 x 4.3 x 4.7 cm

Weight: Model A - 82g; Model B - 83g; Model C - 84g

Packaging: PE bag

Wiring (Model A): Red (Power Positive), Black (Power Negative), Blue (E-lock Line), Green (Gear)

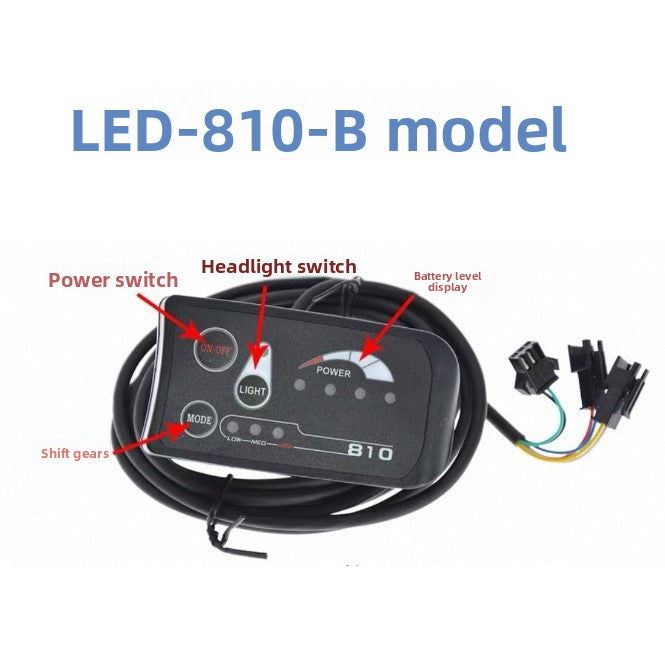

Wiring (Model B): Red (Power Positive), Black (Power Negative), Blue (E-lock Line), Green (Gear), Yellow (Headlight Positive), White (Headlight Negative)

Wiring (Model C): Red (Power Positive), Black (Power Negative), Blue (E-lock Line), Green (Gear), Yellow (Headlight Positive), White (Headlight Negative)

Packing List

display instrument*1
